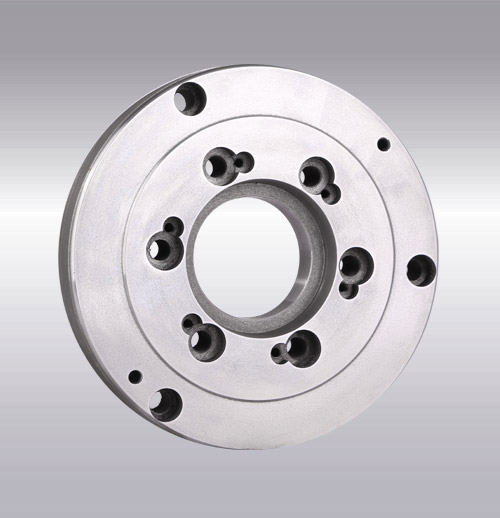

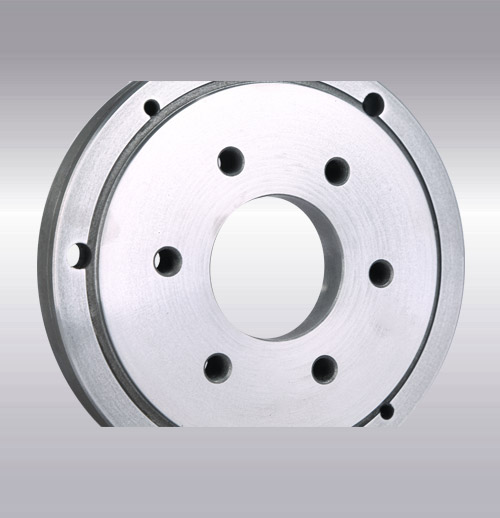

FLANGE PLATE FOR MACHINE TOOL D-TYPE
ExplainOur company provide all kinds of joint flanges, you can consult our sales for any needs.
Product InformationAccording to customer's requirements, we can provide customized steel body chuck.

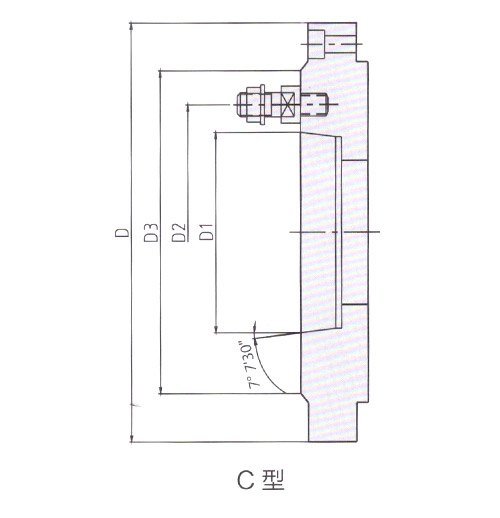

Flange type | D | D1 | D2 | D3 | D4 | d |
FL160D3 | 160 | 53.975 | 70.6 | 92 | - | - |
FL160D4 | 160 | 63.513 | 82.6 | 117 | - | - |
FL160D5 | 160 | 82.563 | 104.8 | 146 | - | - |
FL200D4 | 200 | 63.513 | 82.6 | 117 | - | - |
FL200D5 | 200 | 82.563 | 104.8 | 146 | - | - |
FL200D6 | 200 | 106.375 | 133.4 | 181 | - | - |
FL250D6 | 250 | 106.375 | 133.4 | 181 | - | - |
FL250D8 | 250 | 139.719 | 171.4 | 225 | - | - |
FL320D6 | 320 | 106.375 | 133.4 | 181 | - | - |
FL320D8 | 320 | 139.719 | 171.4 | 225 | - | - |
FL320D11 | 320 | 196.869 | 235 | 298 | - | - |
FL400D8 | 400 | 139.719 | 171.4 | 225 | - | - |
FL400D11 | 400 | 196.869 | 235 | 298 | - | - |
FL500D11 | 500 | 196.869 | 235 | 298 | - | - |
FL630D11 | 630 | 196.869 | 235 | 298 | - | - |
FL630D15 | 630 | 285.775 | 330.2 | 403 | - | - |
