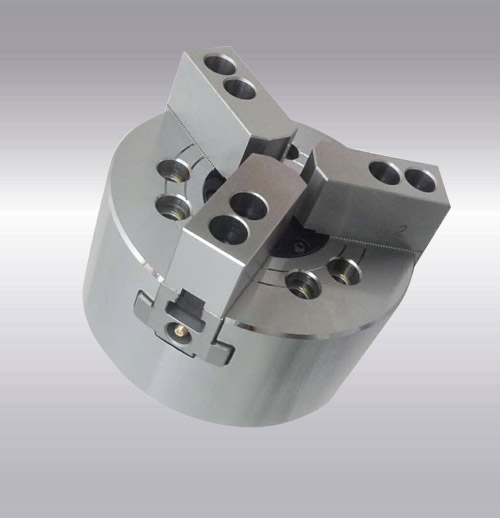

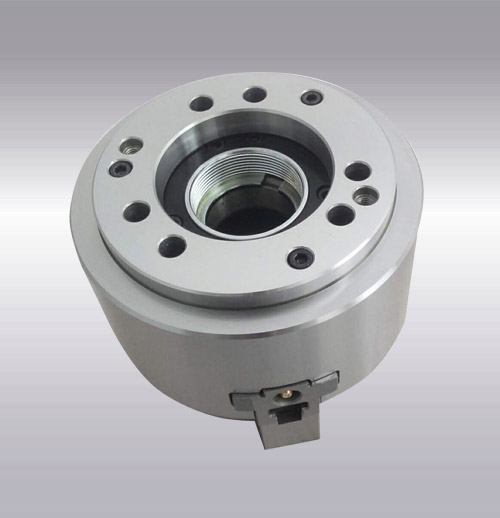

CAVITY THREE-JAW POWER CHUCK

Explain

Short cylinder connecting format, easy to install, large holes, high rotation speed, and long lifespan. It can be used to clamp elbow type, T type, and oval type components.

CONTACT
Product InformationAccording to customer's requirements, we can provide customized steel body chuck.


Specification

wedge stroke mm

jaw stroke （diameter）mm

Chucking Dia.mm

allowed oil hydraulic cylinder thrust (kgf)

Max chucking power (kgf)

highest rpm min-（r.p.m)

I

weight (kg)

applicable rotary cylinder

biggest working pressure

KT04-3

10

5.4

110

7

13.7(1400)

28.4(2900)

8000

0.01

3.8

KH428YT

1.6(16)

KT05-3  A4

10

5.4

135

12

17.1(1750)

35.8(3650)

7000

0.02

6.5   7.3

KH536YT

2.0(20)

KT06-3  A4

12

5.5

168

15

21.5(2200)

56.8(5800)

6000

0.06

11.5 14.3

KH646YT

1.9(19)

KT06-3  A5

12

5.5

168

15

21.5(2200)

56.8(5800)

6000

0.06

11.5 13.3

KH646YT

1.9(19)

KT08-3  A5

16

7.4

210

13

34.3(3500)

85.8(8750)

5000

0.18

21.3  24.2

KH852YT

1.9(19)

KT08-3  A6

16

7.4

210

13

34.3(3500)

85.8(8750)

5000

0.18

21.3  22.4

KH852YT

1.9(19)

KT10-3  A6

19

8.8

254

31

42.6(4380)

110.7(11300)

4200

0.31

33.5  40.5

KH1075YT

1.8(18)

KT10-3  A8

19

8.8

254

31

42.6(4380)

110.7(11300)

4200

0.31

33.5  39

KH1075YT

1.8(18)

KT12-3  A8

23

10.6

304

34

54.9(5600)

143.6(14650)

3300

0.70

59.7  62.7

KH1291YT

1.8(18)

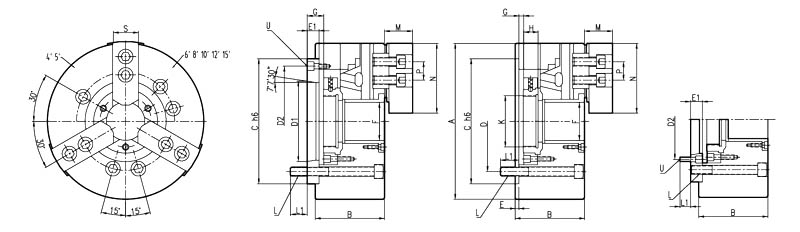

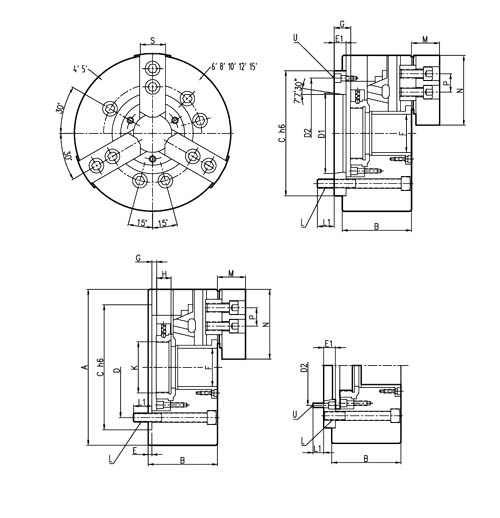

Specification

A

B

C

D

D1

D2

E

E1

F

Gmax.

Gmin.

KT04-3

110

59

85

70.6

-

-

4

-

26

3.5

-6.5

KT05-3  A4

135

60      71

110

82.6

63.51

96

4

15

33

1   16

-9        6

KT06-3  A4

168

81      96

140

104.8

63.51

116

5

20

45

11  31

-1      19

KT06-3  A5

168

81      91

140

104.8

82.56

116

5

15

45

11  26

-1      14

KT08-3  A5

210

91     109

170

133.4

82.56

104.8

5

23

52

14.5    37.5

-1.5    21.5

KT08-3  A6

210

91     103

170

133.4

106.38

150

5

17

52

14.5     31.5

-1.5    15.5

KT10-3  A6

254

100    120

220

171.4

106.38

133.4

5

25

75

8.5     33.5

-10.5 14.5

KT10-3  A8

254

100    113

220

171.4

139.72

190

5

18

75

8.5     26.5

-10.5     7.5

KT12-3  A8

304

110    122

220

171.4

139.72

190

6

18

91

8      26

-15     3


Specification

H

Kmax.

L

L1

M

N

P

S

U

KT04-3

17.5

M32×1.5

3-M10

16

24

52

14

25

-

KT05-3 A4

20

M40×1.5

3-M10

15  15

31

62

14

25

3-M6

KT06-3 A4

19

M55×2

6-M10

16 16

37

73

20

31

6-M10

KT06-3 A5

19

M55×2

6-M10

16 16

37

73

20

31

3-M6

KT08-3 A5

20.5

M60×2

6-M12

20 17

38

95

25

35

6-M10

KT08-3 A6

20.5

M60×2

6-M12

20  18

38

95

25

35

3-M6

KT10-3 A6

25

M85×2

6-M16

22 18

43

110

30

40

6-M12

KT10-3 A8

25

M85×2

6-M16

22 24

43

110

30

40

3-M8

KT12-3 A8

28

M100×2

6-M16

23 25

51

130

30

50

3-M8
