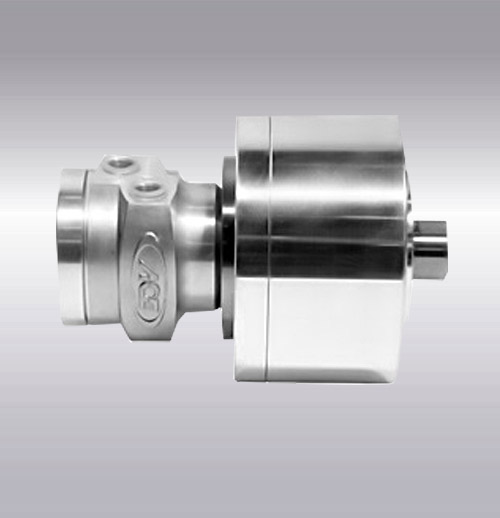

HIGH-SPEED SOLID ROTARY OIL CYLINDER
ExplainIt is made from light aluminum alloy, with the features of low inertia, light weight, high rotation speed, and long lifespan, which decrease the load of the principal axis of the machine. It has high-pressure long stroke, and the components are all imported from abroad.
CONTACT
Model | A | B | C | D |
E h7 |
F | G1 | H | J | K | L |
M H8 |
N | 2-P | |
Max. | Min. | ||||||||||||||
KH65YS |
65 |
15 |
98 |
80 |
60 |
22 |
45 |
30 |
74 |
175 |
M12×30 |
6-M8×16 |
- |
- |
PT3/8 |
KH80YS |
80 |
15 |
112 |
90 |
65 |
25 |
45 |
30 |
74 |
175 |
M16×30 |
6-M8×16 |
- |
- |
|
KH100YS |
100 |
20 |
135 |
100 |
80 |
30 |
45 |
25 |
89 |
190 |
M20×35 |
6-M10×20 |
- |
- |
|
KH125YS |
125 |
25 |
160 |
130 |
110 |
36 |
50 |
25 |
96 |
197 |
M24×44 |
6-M10×20 |
- |
- |
|
KH150YS |
150 |
30 |
190 |
130 |
110 |
45 |
55 |
25 |
105 |
206 |
M30×45 |
12-M12×24 |
31 |
5 |
|
KH200YS |
200 |
35 |
245 |
145 |
120 |
55 |
70 |
35 |
130 |
231 |
M36×60 |
12-M16×30 |
37 |
5 |
Specification |
Piston area |
Stroke | Highest rpm | Biggest working pressure | GD2kgm2 |
weight(kg) |
|
Model | Charge side | Pull side | |||||
KH65YS |
31.0 |
27.9 |
15 |
6000 |
3.5(35) |
0.01 |
2.9 |
KH80YS |
47.7 |
42.8 |
15 |
6000 |
3.5(35) |
0.01 |
3.4 |
KH100YS |
75.4 |
70.5 |
20 |
5500 |
3.5(35) |
0.04 |
4.9 |
KH125YS |
119.6 |
112.5 |
25 |
5500 |
3.5(35) |
0.08 |
6.8 |
KH150YS |
173.6 |
157.7 |
30 |
4000 |
4.0(40) |
0.18 |
11.5 |
KH200YS |
310.0 |
286.3 |
35 |
4000 |
4.0(40) |
0.38 |
20.4 |
