TK22 SERIES FRONT MOUNTING 4-JAW SELF-CENTERING CH

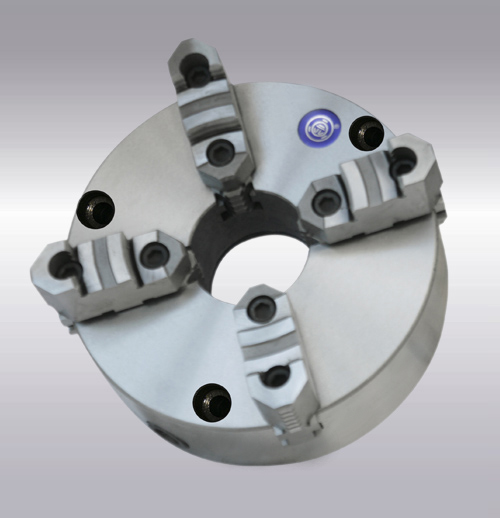

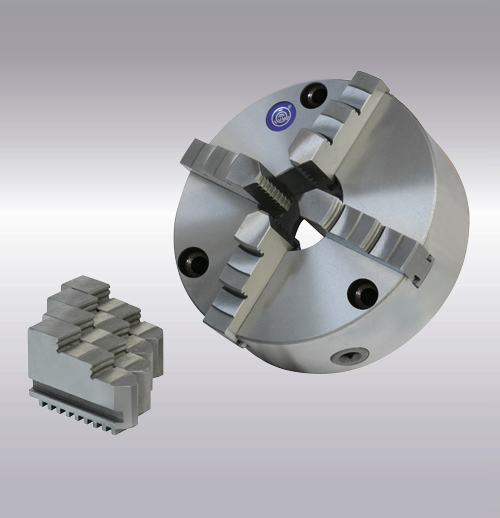

ExplainFront four-jaw self-centring chuck, which is modified based on the common chuck, is fastened by front screws. Compared to traditional chucks, its convenience is largely improved. In order to make the use more convenient, it can also be optionally equipped with soft jaw.
CONTACT
Product InformationAccording to customer's requirements, we can provide customized steel body chuck.

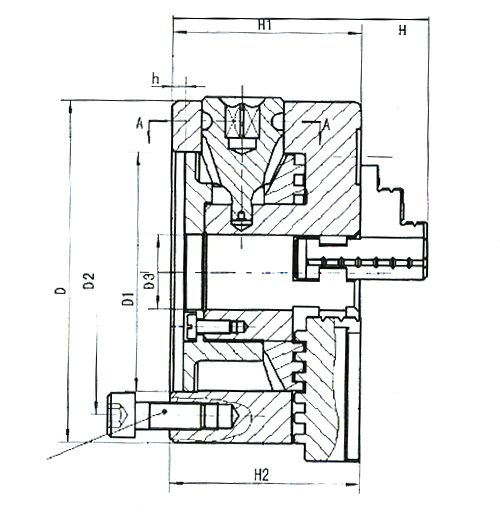

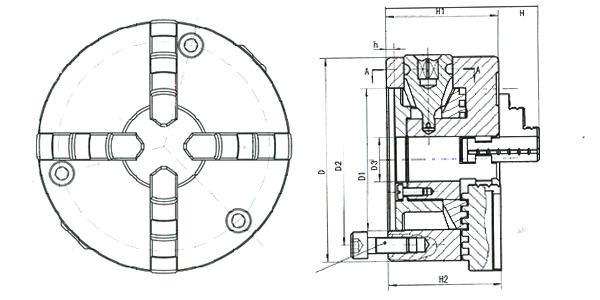

SEPC./MODEL | D1 | D2 | D3 | H | h1 | h | z-d |
TK2280 | 55 | 66 | 16 | 66 | 50 | 3. 5 | 3-M6 |
TK22100 | 72 | 84 | 22 | 74. 5 | 55 | 3. 5 | 3-M8 |
TK22125 | 95 | 108 | 30 | 85 | 58 | 4 | 3-M8 |
TK22130 | 100 | 115 | 30 | 85 | 58 | 4 | 3-M8 |
TK22I60 | 130 | 142 | 40 | 95 | 65 | 5 | 3-M8 |
TK22I60A | 130 | 142 | 40 | 109 | 65 | 5 | 3-M8 |
TK22165 | 130 | 145 | 40 | 95 | 65 | 5 | 3-M8 |
TK22165A | 130 | 145 | 40 | 109 | 65 | 5 | 3-M8 |
TK22190 | 155 | 172 | 55 | 109 | 75 | 5 | 3-M10 |
TK22190A | 155 | 172 | 55 | 122 | 75 | 5 | 3-M10 |
TK22200 | 165 | 180 | 65 | 109 | 75 | 5 | 3-M10 |
TK22200A | 165 | 180 | 65 | 122 | 75 | 5 | 3-M10 |
TK22240 | 195 | 215 | 70 | 120 | 80 | 8 | 3-M12 |
TK22240A | 195 | 215 | 70 | 133 | 80 | 8 | 3-M12 |
TK22250 | 206 | 226 | 80 | 120 | 80 | 5 | 3-M12 |
TK22250A | 206 | 226 | 80 | 133 | 80 | 5 | 3-M12 |
TK22315 | 260 | 285 | 100 | 142. 5 | 90 | 6 | 3-M16 |
TK22315A | 260 | 285 | 100 | 155. 5 | 90 | 6 | 3-M16 |
TK22320 | 270 | 290 | 100 | 142. 5 | 90 | 6 | 3-M16 |
TK22320A | 270 | 290 | 100 | 155. 5 | 90 | 6 | 3-M16 |
TK22325 | 272 | 296 | 100 | 142. 5 | 90 | 6 | 3-M16 |
TK22325A | 272 | 296 | 100 | 155. 5 | 90 | 6 | 3-M16 |
TK22380 | 325 | 350 | 130 | 155. 5 | 100 | 6 | 3-M16 |
TK22380A | 325 | 350 | 130 | 170. 5 | 100 | 6 | 3-M16 |
TK22400 | 340 | 368 | 130 | 155. 5 | 100 | 6 | 3-M16 |
TK22400A | 340 | 368 | 130 | 170. 5 | 100 | 6 | 3-M16 |
TK22500 | 440 | 465 | 200 | 176 | 115 | 6 | 6-M16 |
TK22500A | 440 | 465 | 200 | 203 | 115 | 6 | 6-M16 |
TK22630 | 560 | 595 | 260 | 192 | 130 | 7 | 6-M16 |
TK22630A | 560 | 595 | 260 | 218 | 130 | 7 | 6-M16 |
TK22800A | 710 | 760 | 385 | 249 | 148 | 8 | 6-M20 |
TK221000A | 910 | 950 | 460 | 266 | 165 | 8 | 6-M24 |
