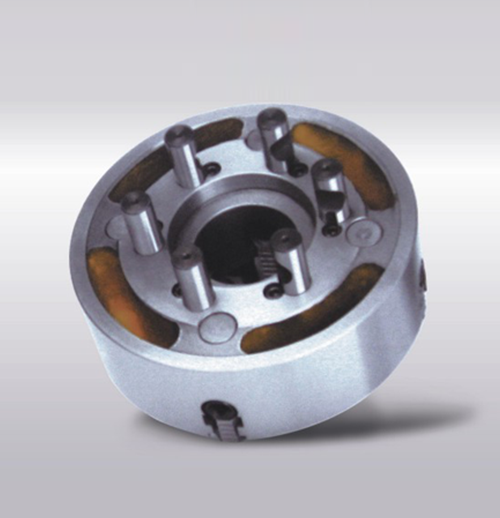

K72 SERIES FOUR-JAW INDEPENDENT CHUCK TYPE D
ExplainK72 series Four-jaw independent chuck adopts short cylinder and short circular cone shape, Short circular cone shape can be subdivided into two types according to the way of joining with the rod of machine tool: Type A (joined with screw), Type C (bolt locking joint), Type D (pull rod cam locking joint).
CONTACT

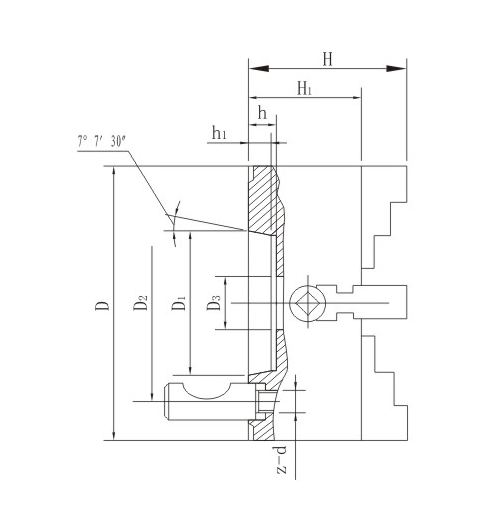

SEPC./MODEL |
D1 |
D2 |
D3 |
H |
h1 |
h |
h2 |
z-d |
K/7200/D4 |
63.513 |
82.6 |
56 |
107 |
75 |
13 |
10 |
3-M10×1 |
K72250/D4 |
63.513 |
82.6 |
61 |
120 |
80 |
- |
10 |
3-M10×1 |
K72320/D4 |
63.513 |
82.6 |
61 |
138 |
90 |
- |
10 |
3-M10×1 |
K72250/D6 |
106.375 |
133.4 |
75 |
120 |
80 |
16 |
13 |
6-M16×1.5 |
K72320/D6 |
106.375 |
133.4 |
95 |
138 |
90 |
16 |
13 |
6-M16×1.5 |
K72400/D6 |
106.375 |
133.4 |
95 |
143 |
95 |
16 |
13 |
6-M16×1.5 |
K72500/D6 |
106.375 |
133.4 |
103 |
160 |
105 |
- |
13 |
6-M16×1.5 |
K72320/D8 |
139.719 |
171.4 |
95 |
138 |
90 |
18 |
14 |
6-M20×1.5 |
K72400/D8 |
139.719 |
171.4 |
125 |
143 |
95 |
18 |
14 |
6-M20×1.5 |
K72500/D8 |
139.719 |
171.4 |
136 |
160 |
105 |
- |
14 |
6-M20×1.5 |
K72400/D11 |
196.869 |
235 |
125 |
143 |
95 |
20 |
16 |
6-M22×1.5 |
K72500/D11 |
196.869 |
235 |
160 |
160 |
105 |
20 |
16 |
6-M22×1.5 |
K72630/D11 |
196.869 |
235 |
180 |
180 |
115 |
20 |
16 |
6-M22×1.5 |
K72500/D15 |
285.775 |
330.2 |
160 |
160 |
105 |
21 |
17 |
6-M24×1.5 |
K72630/D15 |
285.775 |
330.2 |
180 |
180 |
115 |
21 |
17 |
6-M24×1.5 |
