K10 SERIES TWO-JAW SELF-CENTRING CHUCK
ExplainK10 series Two-jaw Self-centring chuck is of separate jaws and comes with soft jaws. It is suitable for processing various special shaped workpieces, such as tube, rectangular section accessories and so on. Users may change the plate to a certain holding style according to needs. Higher centring accuracy can be achieved after being rubbed on the machine, so as to satisfy the need for holding.
CONTACT
Product InformationAccording to customer's requirements, we can provide customized steel body chuck.

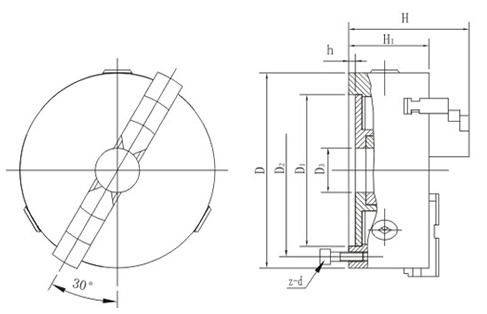

SEPC./MODEL | D1 | D2 | D3 | H | H1 | h | Z-d |
K1080 | 55 | 66 | 16 | 66 | 50 | 3. 5 | 3-M6 |
K10100 | 72 | 84 | 22 | 74.5 | 55 | 3. 5 | 3-M8 |
K10125 | 95 | 108 | 30 | 84 | 58 | 4 | 3-M8 |
K10160 | 130 | 142 | 40 | 95 | 65 | 5 | 3-M8 |
K10160A | 130 | 142 | 40 | 109 | 65 | 5 | 3-M8 |
K10165 | 130 | 145 | 40 | 95 | 65 | 5 | 3-M8 |
K10165A | 130 | 145 | 40 | 109 | 65 | 5 | 3-M8 |
K10200 | 165 | 180 | 65 | 109 | 75 | 5 | 3-M10 |
K10200A | 165 | 180 | 65 | 122 | 75 | 5 | 3-M10 |
K10250 | 206 | 226 | 80 | 120 | 80 | 5 | 3-M12 |
K10250A | 206 | 226 | 80 | 133 | 80 | 5 | 3-M12 |
K10315 | 260 | 285 | 100 | 142.5 | 90 | 6 | 3-M16 |
K10315A | 260 | 285 | 100 | 155.5 | 90 | 6 | 3-M16 |
K10320 | 270 | 290 | 100 | 142.5 | 90 | 6 | 3-M16 |
K10320A | 270 | 290 | 100 | 155.5 | 90 | 6 | 3-M16 |
K10325 | 272 | 290 | 100 | 142.5 | 90 | 6 | 3-M16 |
K10325A | 272 | 290 | 100 | 155.5 | 90 | 6 | 3-M16 |
K10380 | 325 | 350 | 130 | 155.5 | 100 | 6 | 3-M16 |
K10380A | 325 | 350 | 130 | 170.5 | 100 | 6 | 3-M16 |
K10400 | 340 | 368 | 130 | 155.5 | 100 | 6 | 3-M16 |
K10400A | 340 | 368 | 130 | 170.5 | 100 | 6 | 3-M16 |
