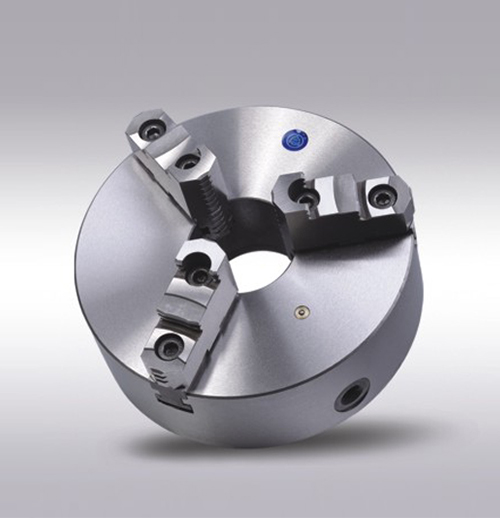

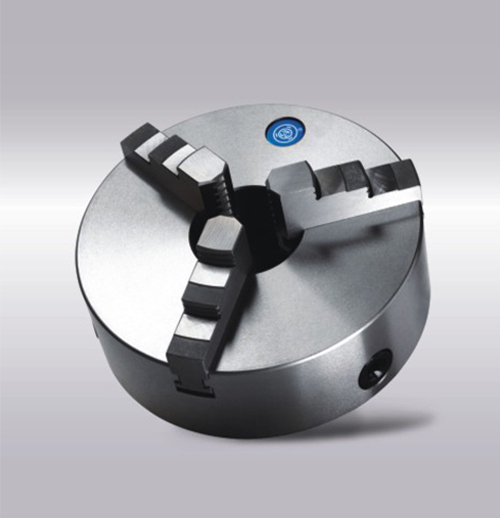

DK11 3 JAW SELF CENTRING CHUCK
ExplainDK11 DIN-type three jaw self-centering chuck is suitable for the main shaft of Germany’s standard,produce according to DIN6350 Standard,it have frontlock tyle as well. The chucks of this type are mounted to a spindle nose through an adapting flange. A set of internal jaws and a set of external jaws are provided with it as well as 2-piece jaws. Two-piece jaws are according to IS03442 Standard. Soft jaws are offered upon users request to increase the clamping accuracy by re-machining.

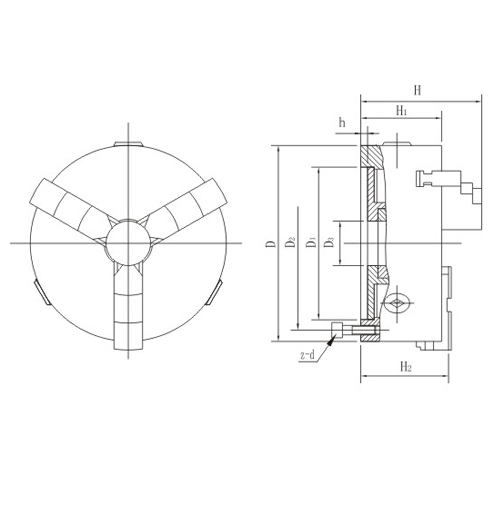

CONTACTSEPC. /MODEL | D1 | D2 | D3 | H | H1 | H2 | h | z-d |
DK1180 | 56 | 67 | 16 | 66 | 50 | - | 3 | 3-M6 |
DK11100 | 70 | 83 | 22 | 74. 5 | 55 | - | 3 | 3-M8 |
DK11125 | 95 | 108 | 30 | 84 | 58 | - | 4 | 3-M8 |
DK11160 | 125 | 140 | 45 | 95 | 65 | - | 4 | 6-M10 |
DK11160A | 125 | 140 | 45 | 109 | 65 | 71 | 4 | 6-M10 |
DK11200 | 160 | 176 | 65 | 109 | 75 | - | 4 | 6-M10 |
DK11200A | 160 | 176 | 65 | 122 | 75 | 80 | 4 | 6-M10 |
DK11250 | 200 | 224 | 80 | 120 | 80 | - | 5 | 6-M12 |
DK11250A | 200 | 224 | 80 | 134. 5 | 80 | 86 | 5 | 6-M12 |
DK11315 | 260 | 286 | 104 | 131. 5 | 90 | - | 5 | 6-M16 |
DK11315A | 260 | 286 | 104 | 148. 5 | 90 | 96. 5 | 5 | 6-M16 |
DK11400 | 330 | 362 | 136 | 157. 5 | 100 | - | 5 | 6-M16 |
DK11400A | 330 | 362 | 136 | 167 | 100 | 108. 5 | 5 | 6-M16 |
DK11500A | 420 | 458 | 200 | 203 | 115 | 123 | 6 | 6-M16 |
DK11630A | 545 | 586 | 260 | 218 | 130 | 138 | 7 | 6-M16 |
DK11800A | 710 | 760 | 385 | 249 | 148 | 158 | 8 | 6-M20 |
DK111000A | 910 | 950 | 460 | 266 | 165 | 175 | 8 | 6-M24 |
