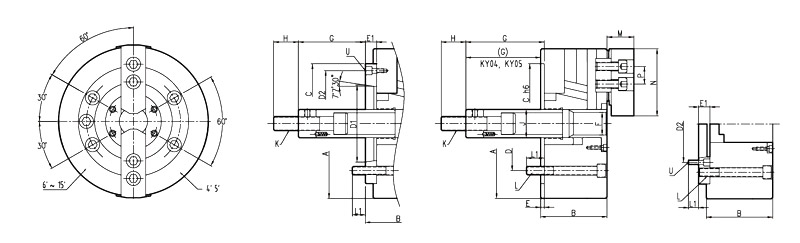

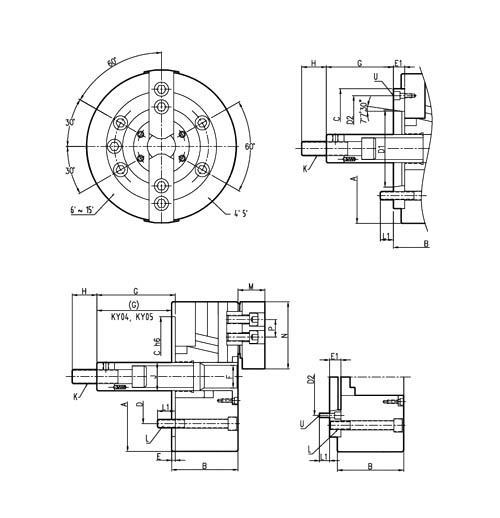

規(guī)格 | A | B | C | D | D1 | D2 | E | E1 | F | Gmax. | Gmin. |
KY04-2 | 110 | 52 | 60 | 80 | - | - | 6 | - | - | 18 | 3 |
KY05-2 | 135 | 55 | 80 | 100 | - | - | 7 | - | - | 9 | -6 |
KY06-2 A5 | 165 | 74 84 | 140 | 104.8 | 82.56 | 116 | 5 | 15 | 21 | 101.5 86.5 | 81.5 66.6 |
KY08-2 A5 | 210 | 85 103 | 170 | 133.4 | 82.56 | 104.8 | 5 | 23 | 25 | 127 104 | 106 83 |
KY08-2 A6 | 210 | 85 97 | 170 | 133.4 | 106.38 | 150 | 5 | 17 | 25 | 127 110 | 106 89 |
KY10-2 A6 | 254 | 89 109 | 220 | 171.4 | 106.38 | 133.4 | 5 | 25 | 34 | 158 133 | 133 108 |
KY10-2 A8 | 254 | 89 102 | 220 | 171.4 | 139.72 | 190 | 5 | 18 | 34 | 158 140 | 133 115 |
KY12-2 A8 | 304 | 106 118 | 220 | 171.4 | 139.72 | 190 | 6 | 18 | 34 | 163 145 | 133 115 |
規(guī)格 | H | J | Kmax. | L | L1 | M | N | P | S | U |
KY04-2 | 25 | 26 | M10×1.5 | 4-M8 | 12 | 24 | 52 | 14 | 25 | - |
KY05-2 | 35 | 28 | M12×1.75 | 4-M8 | 14 | 31 | 62 | 14 | 25 | - |
KY06-2 A5 | 36 | 34 | M16×2 | 6-M10 | 14 14 | 37 | 73 | 20 | 31 | 3-M6 |
KY08-2 A5 | 36 | 38 | M20×2.5 | 6-M12 | 20 17 | 38 | 95 | 25 | 35 | 6-M10 |
KY08-2 A6 | 36 | 38 | M20×2.5 | 6-M12 | 20 18 | 38 | 95 | 25 | 35 | 3-M6 |
KY10-2 A6 | 36 | 45 | M20×2.5 | 6-M16 | 18 18 | 43 | 110 | 30 | 40 | 6-M12 |
KY10-2 A8 | 36 | 45 | M20×2.5 | 6-M16 | 18 25 | 43 | 110 | 30 | 40 | 6-M8 |
KY12-2 A8 | 36 | 50 | M20×2.5 | 6-M16 | 22 25 | 51 | 130 | 30 | 50 | 6-M8 |
