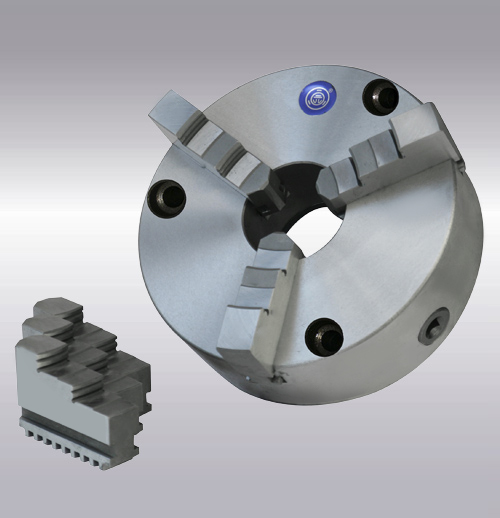

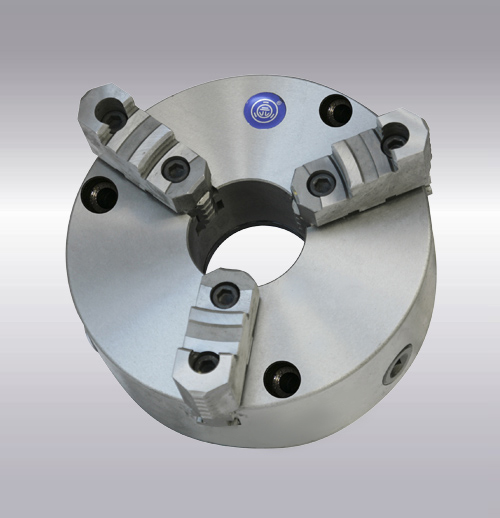

TK21前穿式三爪卡盤
適用范圍前穿式三爪卡盤,是在普通卡盤基礎上進行改進,采用前穿螺母鎖緊,比起傳統結構的卡盤使用的便捷性上有很大的提升。為方便客戶使用,同時提供配套的軟爪選購。

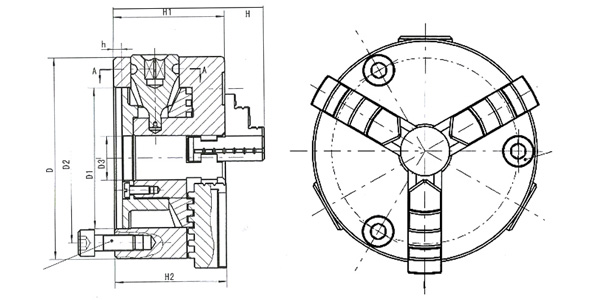

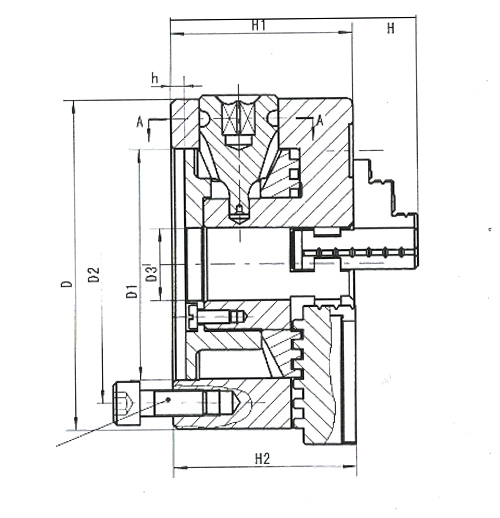

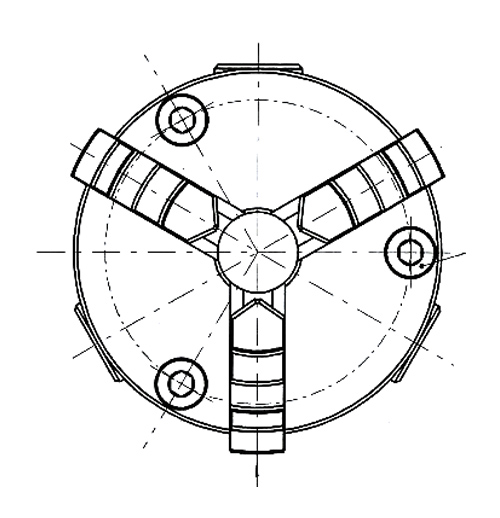

聯系我們規格/型式 | D1 | D2 | D3 | H | H1 | H2 | h | z-d |
TK2180 | 55 | 66 | 16 | 66 | 50 | - | 3. 5 | 3-M6 |
TK21100 | 72 | 84 | 22 | 74. 5 | 55 | _ | 3. 5 | 3-M8 |
TK21125 | 95 | 108 | 30 | 85 | 58 | - | 4 | 3-M8 |
TK21130 | 100 | 115 | 30 | 85 | 58 | - | 4 | 3-M8 |
TK21160 | 130 | 142 | 40 | 95 | 65 | - | 5 | 3-M8 |
TK21160A | 130 | 142 | 40 | 109 | 65 | 71 | 5 | 3-M8 |
TK21165 | 130 | 145 | 40 | 95 | 65 | - | 5 | 3-M8 |
TK21165A | 130 | 145 | 40 | 109 | 65 | 71 | 5 | 3-M8 |
TK21190 | 155 | 172 | 55 | 109 | 75 | - | 5 | 3-M10 |
TK21190A | 155 | 172 | 55 | 122 | 75 | 80 | 5 | 3-M10 |
TK21200 | 165 | 180 | 65 | 109 | 75 | - | 5 | 3-M10 |
TK21200A | 165 | 180 | 65 | 122 | 75 | 80 | 5 | 3-M10 |
TK21240 | 195 | 215 | 70 | 120 | 80 | - | 8 | 3-M12 |
TK21240A | 195 | 215 | 70 | 133 | 80 | 85 | 8 | 3-M12 |
TK21250 | 206 | 226 | 80 | 120 | 80 | - | 5 | 3-M12 |
TK21250A | 206 | 226 | 80 | 133 | 80 | 85 | 5 | 3-M12 |
TK21315 | 260 | 285 | 100 | 142. 5 | 90 | - | 6 | 3-M16 |
TK21315A | 260 | 285 | 100 | 155. 5 | 90 | 96. 5 | 6 | 3-M16 |
TK21320 | 270 | 290 | 100 | 142. 5 | 90 | - | 6 | 3-M16 |
TK21320A | 270 | 290 | 100 | 155. 5 | 90 | 96. 5 | 6 | 3-M16 |
TK21325 | 272 | 296 | 100 | 142. 5 | 90 | - | 6 | 3-M16 |
TK21325A | 272 | 296 | 100 | 155. 5 | 90 | 96. 5 | 6 | 3-M16 |
TK21380 | 325 | 350 | 130 | 155. 5 | 100 | - | 6 | 3-M16 |
TK21380A | 325 | 350 | 130 | 170. 5 | 100 | 96. 5 | 6 | 3-M16 |
TK21400 | 340 | 368 | 130 | 155. 5 | 100 | - | 6 | 3-M16 |
TK21400A | 340 | 368 | 130 | 170. 5 | 100 | 108. 5 | 6 | 3-M16 |
TK21500 | 440 | 465 | 200 | 176 | 115 | - | 6 | 6-M16 |
TK21500A | 440 | 465 | 200 | 203 | 115 | 123 | 6 | 6-M16 |
TK21630 | 560 | 595 | 260 | 192 | 130 | - | 7 | 6-M16 |
TK21630A | 560 | 595 | 260 | 218 | 130 | 138 | 7 | 6-M16 |
TK21800A | 710 | 760 | 385 | 249 | 148 | 158 | 8 | 6-M20 |
TK211000A | 910 | 950 | 460 | 266 | 165 | - | 8 | 6-M24 |
TK211250A | 910 | 950 | 500 | 281 | 180 | - | 10 | 6-M24 |
