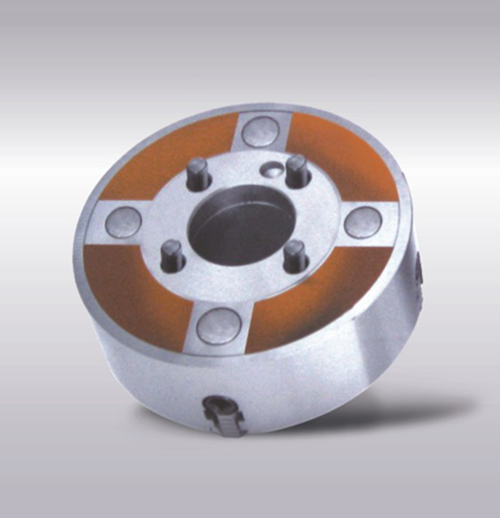

K72四爪單動卡盤A型
適用范圍K72系列四爪單動卡盤采用短圓柱型和短圓錐型。短 圓錐型按其與機床主軸端部連接式分為A型(穿通螺釘 連接)、C型(拔盤、螺栓鎖緊連接)、D型(拉桿、凸輪 鎖緊連接)三種型式。

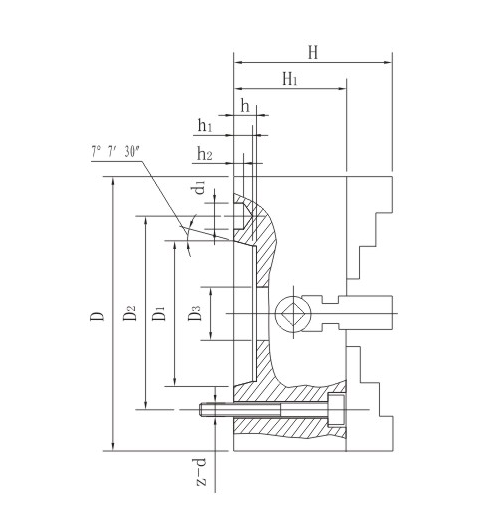

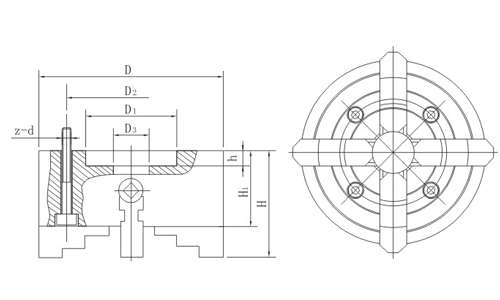

聯系我們規格/型式 | D1 | D2 | D3 | H | H1 | h | h1 | h2 | d1 | z-d |
K72160/A2-4 | 63. 513 | 82.6 | 45 | 93 | 65 | 13 | 10 | 6.5 | 14. 7 | 4-M10 |
K72200/A2-4 | 63. 513 | 82.6 | 56 | 107 | 75 | 13 | 10 | 6.5 | 14. 7 | 4-M10 |
K72250/A2-4 | 63. 513 | 82.6 | 61 | 120 | 80 | 13 | 10 | 6. 5 | 14.7 | 4-M10 |
K72320/A2-4 | 63.513 | 82.6 | 61 | 138 | 90 | - | 10 | 6.5 | 14.7 | 4-M10 |
K72200/A2-6 | 106. 375 | 133.4 | 56 | 107 | 75 | 16 | 13 | 6.5 | 19.5 | 4-M12 |
K72250/A2-6 | 106. 375 | 133.4 | 75 | 120 | 80 | 16 | 13 | 6.5 | 19.5 | 4-M12 |
K72320/A2-6 | 106. 375 | 133.4 | 95 | 138 | 90 | 16 | 13 | 6.5 | 19.5 | 4-M12 |
K72400/A2-6 | 106. 375 | 133.4 | 95 | 143 | 95 | 16 | 13 | 6.5 | 19.5 | 4-M12 |
K72500/A2-6 | 106. 375 | 133.4 | 103 | 160 | 105 | - | 13 | 6.5 | 19.5 | 4-M12 |
K72520/A2-8 | 139.719 | 171.4 | 75 | 120 | 80 | 18 | 14 | 8 | 24.2 | 4-M16 |
K72320/A2-8 | 139. 719 | 171.4 | 95 | 138 | 90 | 18 | 14 | 8 | 24.2 | 4-M16 |
K72400/A2-8 | 139.719 | 171.4 | 125 | 143 | 95 | 18 | 14 | 8 | 24.2 | 4-M16 |
K72500/A2-8 | 139. 719 | 171.4 | 136 | 160 | 105 | - | 14 | 8 | 24.2 | 4-M16 |
K72320/A2-11 | 196. 869 | 235 | 95 | 138 | 90 | 20 | 16 | 10 | 29.4 | 4-M20 |
K72400/A2-11 | 196. 869 | 235 | 125 | 143 | 95 | 20 | 16 | 10 | 29.4 | 4-M20 |
K72520/A2-11 | 196. 869 | 235 | 160 | 160 | 105 | 20 | 16 | 10 | 29.4 | 4-M20 |
K72630/A2-11 | 196. 869 | 235 | 180 | 180 | 115 | 20 | 16 | 10 | 29.4 | 4-M20 |
K72500/A2-15 | 285. 775 | 330.2 | 160 | 160 | 105 | 21 | 17 | 10 | 35.7 | 4-M24 |
K72630/A2-15 | 285. 775 | 330.2 | 180 | 180 | 115 | 21 | 17 | 10 | 35.7 | 4-M24 |
