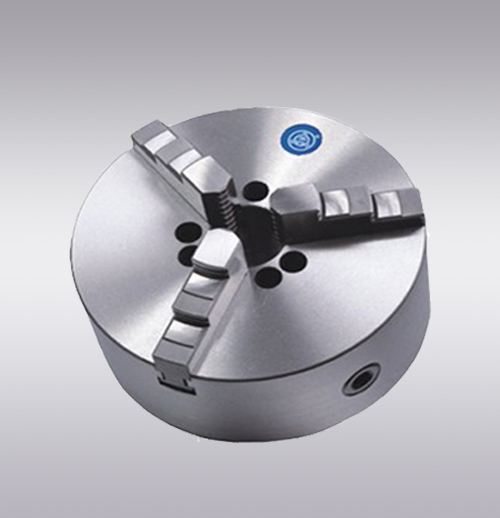

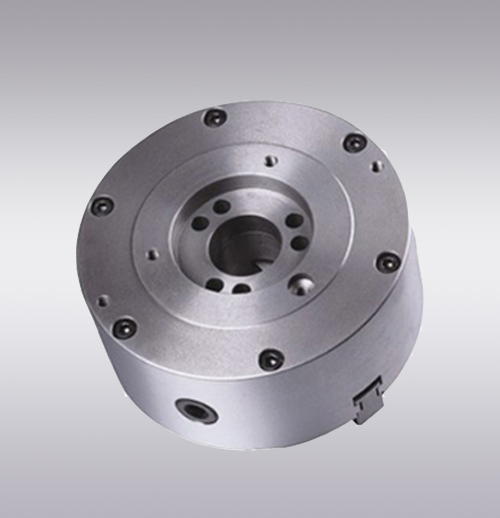

三爪自定心卡盤A1型
適用范圍K11系列短錐三爪自定心卡盤采用短圓錐孔定位,定位精度高,拆裝 快捷、方便、可靠。按其與機(jī)床主軸端部連接型式分為A型(穿通螺釘 連接)、C型(拔盤、螺栓鎖緊連接)、D型(拉桿、凸輪鎖緊連接)三種 型式。

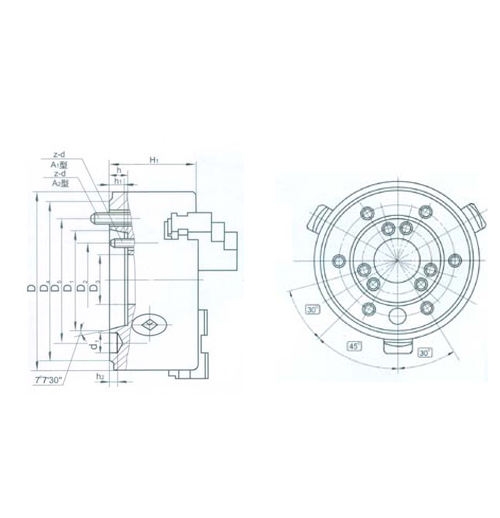

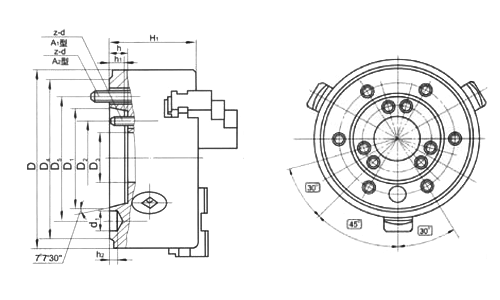

聯(lián)系我們規(guī)格/型式 | D | D1 | D2 | D3 | D4 | D5 | H1 | h | h1 | h2 | d1 | z-d |
K11200/A15、K11200A/A15 | 200 | 82. 563 | 61.9 | 40 | 133 | 104.8 | 93 | 14.288 | 12 | 6.5 | 16.3 | 3-M10 |
K11250/A15、K11250A/A15 | 250 | 82. 563 | 61.9 | 40 | 133 | 104.8 | 104 | 14.288 | 12 | 6.5 | 16.3 | 3-M10 |
K11250/A16、K11250A/A16 | 250 | 106. 375 | 82.6 | 55 | 165 | 133.4 | 104 | 15.875 | 13 | 6.5 | 19.5 | 6-M12 |
K11315/A16、K11315A/A16 | 315 | 106. 375 | 82.6 | 55 | 165 | 133.4 | 114 | 15.875 | 13 | 6.5 | 19.5 | 6-M12 |
K11315/A18、 K11315A/A18 | 315 | 139. 719 | 111.1 | 78 | 210 | 171.4 | 116 | 17.462 | 14 | 8 | 24.2 | 6-M16 |
K11320/A16、K11320A/A16 | 320 | 106. 375 | 82.6 | 55 | 165 | 133.4 | 114 | 15.875 | 13 | 6.5 | 19.5 | 6-M12 |
K11320/A18、K11320A/A18 | 320 | 139. 719 | 111.1 | 78 | 210 | 171.4 | 116 | 17.462 | 14 | 8 | 24.2 | 6-M16 |
K11325/A16、K11325A/A16 | 325 | 106. 375 | 82.6 | 55 | 165 | 133.4 | 114 | 15.875 | 13 | 6.5 | 19.5 | 6-M12 |
K11325/A18、K11325A/A18 | 325 | 139. 719 | 111.1 | 78 | 210 | 171.4 | 116 | 17.462 | 14 | 8 | 24.2 | 6-M16 |
K11380/A18、K11380A/A18 | 380 | 139.719 | 111.1 | 78 | 210 | 171.4 | 128 | 17.462 | 14 | 8 | 24.2 | 6-M16 |
K11400/A18、 K11400A/A18 | 400 | 139.719 | 111.1 | 78 | 210 | 171.4 | 128 | 17.462 | 14 | 8 | 24.2 | 6-M16 |
K11500/A111、K11500A/A111 | 500 | 196. 869 | 165.1 | 125 | 280 | 235 | 145 | 19.050 | 16 | 10 | 29.4 | 6-M20 |
K11500/A115、K11500A/A115 | 500 | 285. 775 | 247.6 | 200 | 380 | 330.2 | 145 | 20.638 | 17 | 10 | 35.7 | 6-M24 |
