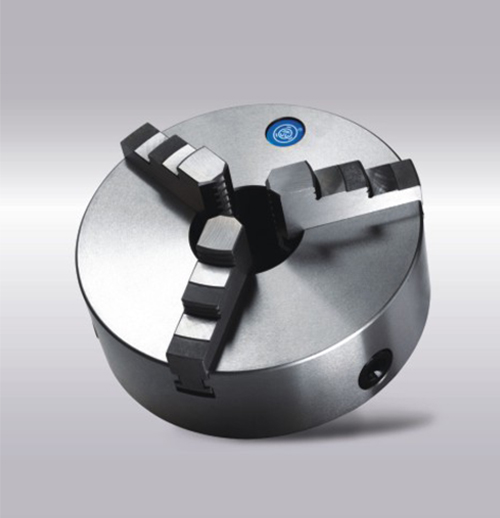

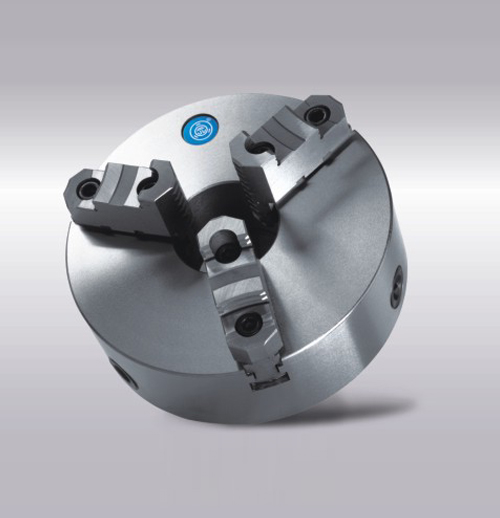

K11三爪自定心卡盤
適用范圍K11型三爪自定心卡盤為K11、K11A二種型號。K11型配帶 正爪和反爪各一副,可分別使用,K11A型配帶符合 IS03442標準的分離爪。并可根據用戶提供軟卡爪,經隨機 配車(磨)后可獲得較高定心精度,滿足夾持要求。

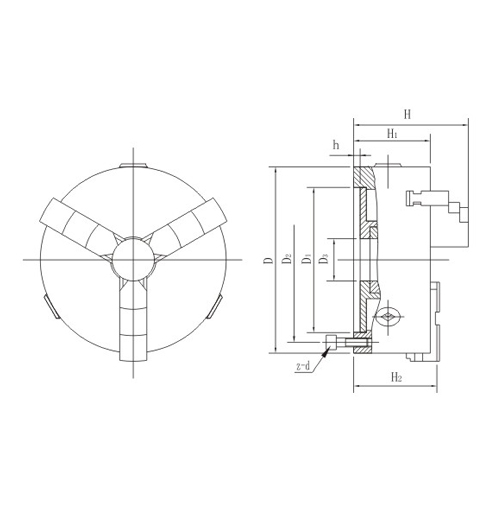

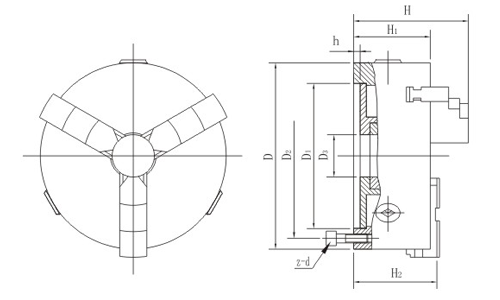

聯系我們SEPC./MODEL | D1 | D2 | D3 | H | H1 | H2 | h | z-d |
K1180 | 55 | 66 | 16 | 66 | 50 | - | 3. 5 | 3-M6 |
K11100 | 72 | 84 | 22 | 74. 5 | 55 | _ | 3. 5 | 3-M8 |
K11125 | 95 | 108 | 30 | 85 | 58 | - | 4 | 3-M8 |
K11130 | 100 | 115 | 30 | 85 | 58 | - | 4 | 3-M8 |
K11160 | 130 | 142 | 40 | 95 | 65 | - | 5 | 3-M8 |
K11160A | 130 | 142 | 40 | 109 | 65 | 71 | 5 | 3-M8 |
K11165 | 130 | 145 | 40 | 95 | 65 | - | 5 | 3-M8 |
K11165A | 130 | 145 | 40 | 109 | 65 | 71 | 5 | 3-M8 |
K11190 | 155 | 172 | 55 | 109 | 75 | - | 5 | 3-M10 |
K11190A | 155 | 172 | 55 | 122 | 75 | 80 | 5 | 3-M10 |
K11200 | 165 | 180 | 65 | 109 | 75 | - | 5 | 3-M10 |
K11200A | 165 | 180 | 65 | 122 | 75 | 80 | 5 | 3-M10 |
K11240 | 195 | 215 | 70 | 120 | 80 | - | 8 | 3-M12 |
K11240A | 195 | 215 | 70 | 133 | 80 | 85 | 8 | 3-M12 |
K11250 | 206 | 226 | 80 | 120 | 80 | - | 5 | 3-M12 |
K11250A | 206 | 226 | 80 | 133 | 80 | 85 | 5 | 3-M12 |
K11315 | 260 | 285 | 100 | 142. 5 | 90 | - | 6 | 3-M16 |
K11315A | 260 | 285 | 100 | 155. 5 | 90 | 96. 5 | 6 | 3-M16 |
K11320 | 270 | 290 | 100 | 142. 5 | 90 | - | 6 | 3-M16 |
K11320A | 270 | 290 | 100 | 155. 5 | 90 | 96. 5 | 6 | 3-M16 |
K11325 | 272 | 296 | 100 | 142. 5 | 90 | - | 6 | 3-M16 |
K11325A | 272 | 296 | 100 | 155. 5 | 90 | 96. 5 | 6 | 3-M16 |
K11380 | 325 | 350 | 130 | 155. 5 | 100 | - | 6 | 3-M16 |
K11380A | 325 | 350 | 130 | 170. 5 | 100 | 96. 5 | 6 | 3-M16 |
K11400 | 340 | 368 | 130 | 155. 5 | 100 | - | 6 | 3-M16 |
K11400A | 340 | 368 | 130 | 170. 5 | 100 | 108. 5 | 6 | 3-M16 |
K11500 | 440 | 465 | 200 | 176 | 115 | - | 6 | 6-M16 |
K11500A | 440 | 465 | 200 | 203 | 115 | 123 | 6 | 6-M16 |
K11630 | 560 | 595 | 260 | 192 | 130 | - | 7 | 6-M16 |
K11630A | 560 | 595 | 260 | 218 | 130 | 138 | 7 | 6-M16 |
K11800A | 710 | 760 | 385 | 249 | 148 | 158 | 8 | 6-M20 |
K111000A | 910 | 950 | 460 | 266 | 165 | - | 8 | 6-M24 |
K111250A | 910 | 950 | 500 | 281 | 180 | - | 10 | 6-M24 |
